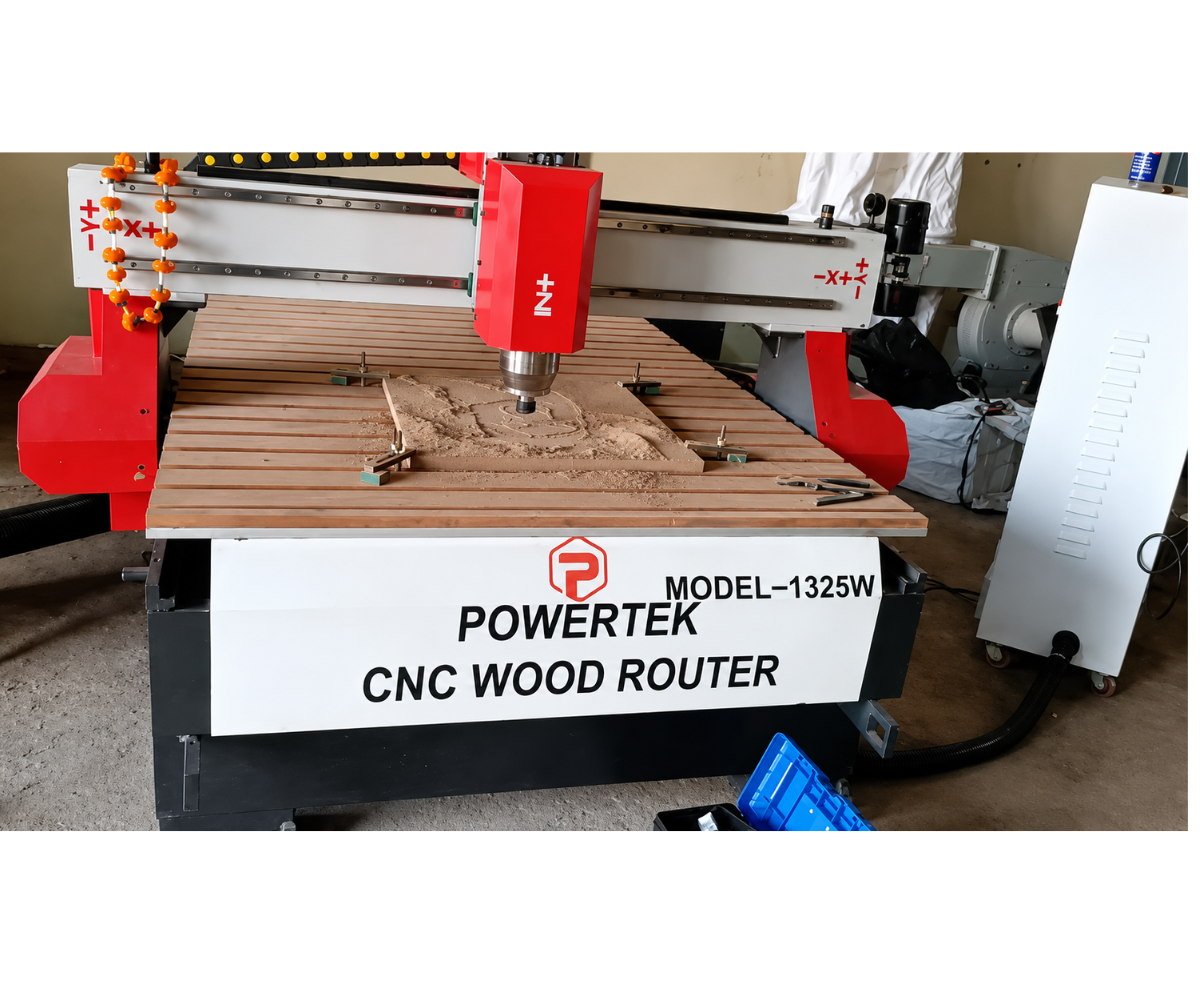

Powertek CNC Router Machine is an advanced 4-axis industrial routing solution designed for high-precision woodworking, carving, cutting, sculpting, and panel processing applications. Built for heavy-duty production, the machine delivers excellent accuracy, high working speeds, and reliable performance for professional furniture and woodworking industries.

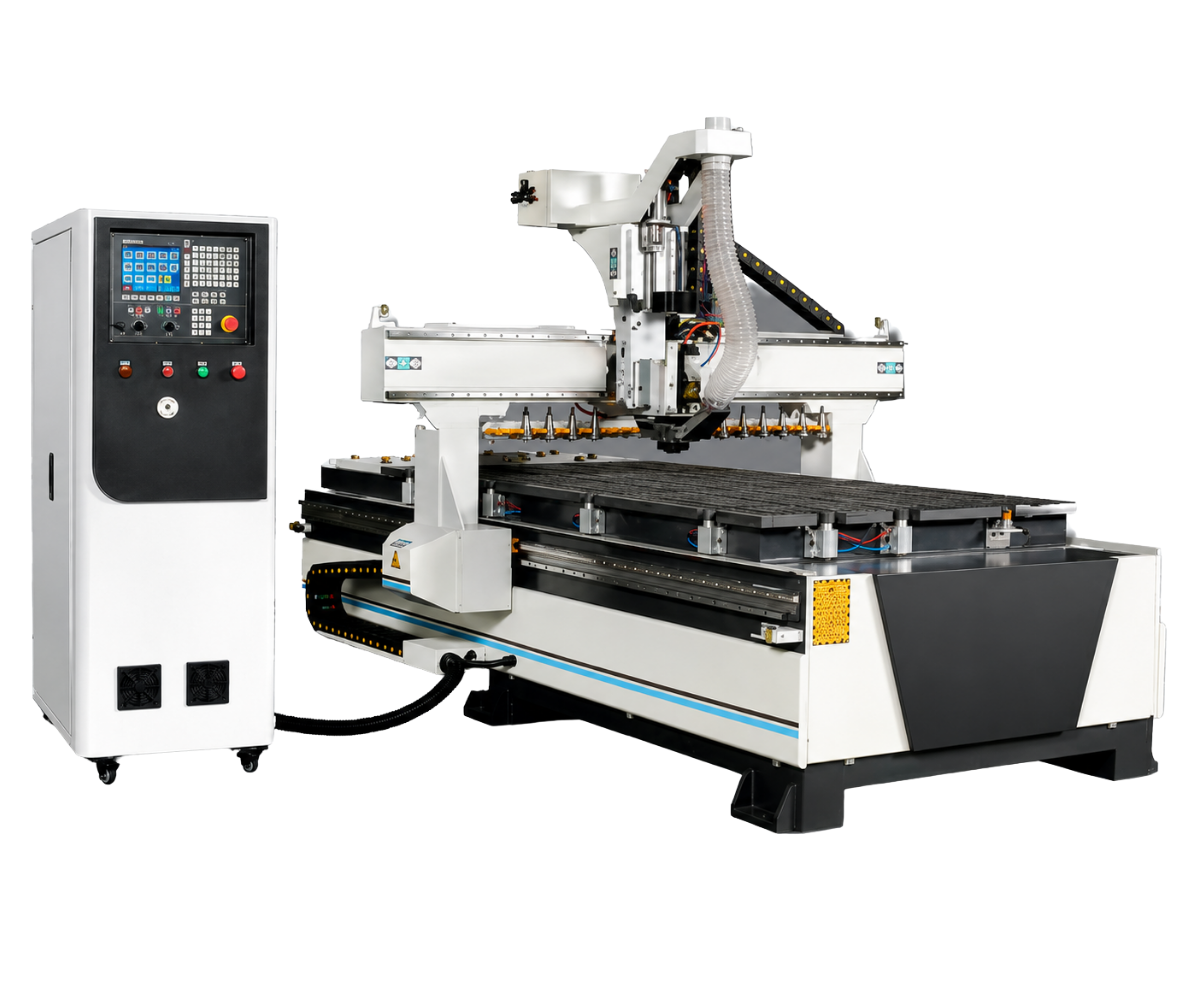

The MTRAT 1325 4A CNC Router offers a 1300 × 2500 mm working area with a durable T-slot table and optional vacuum system. It is equipped with a powerful 9 kW HQD air-cooled spindle capable of speeds up to 24,000 RPM, servo drive motors, SYNTEC control system, and rack-and-pinion transmission with linear square guide rails for smooth, stable, and precise machining.
Key Features
- Advanced 4-axis CNC technology
- 1300 × 2500 mm working area
- 9 kW HQD air-cooled spindle
- Spindle speed up to 24,000 RPM
- SYNTEC control with servo motors
- High accuracy of ±0.01 mm
- T-slot table with optional vacuum system
Applications
- Furniture Design
- Wood Carving
- Door Making
- 3D Sculpting
- Panel Processing
Product Specifications
| Model | MTR 1325 | MTR 1530 |
|---|---|---|
| X,Y working size | 1300 × 2500 mm | 1500 × 3000 mm |
| Z feed height | 200 mm | 200 mm |
| Table surface | T-slot (Option: Vacuum table) | T-slot (Option: Vacuum table) |
| X,Y structure | Rack and pinion, Taiwan linear square guide rail | Rack and pinion, Taiwan linear square guide rail |
| Z structure | Taiwan linear square guide rail & Ball screw | Taiwan linear square guide rail & Ball screw |
| Max. power consumption | (Without spindle) 2.0 kW | (Without spindle) 2.0 kW |
| Max. rapid travel rate | 33000 mm/min | 33000 mm/min |
| Max. working speed | 25000 mm/min | 25000 mm/min |
| Spindle power | 3 kW to 6 kW air cooling spindle | 3 kW to 6 kW air cooling spindle |
| Spindle speed | 0–18000 RPM | 0–18000 RPM |
| Drive motors | Stepper, Easy servo & AC servo | Stepper, Easy servo & AC servo |
| Working voltage | AC220V or 380V / 50 / 60Hz | AC220V or 380V / 50 / 60Hz |
| Command language | G code | G code |
| Control system | DSP | DSP |
| X,Y,Z repositioning accuracy | ±0.01 mm | ±0.01 mm |
| X,Y resolution | <0.01 mm | <0.01 mm |
| Software | Artcam | Artcam |
| Running Temperature | 0°C – 45°C | 0°C – 45°C |
| Relative humidity | 30% – 75% | 30% – 75% |
| Optional parts | Air cooling spindle, water cooled | Air cooling spindle, water cooled |
| Rotary system | Rotary system | |
| Vacuum table | Vacuum table | |
| Panasonic/Yaskawa servo motors | Panasonic/Yaskawa servo motors |
