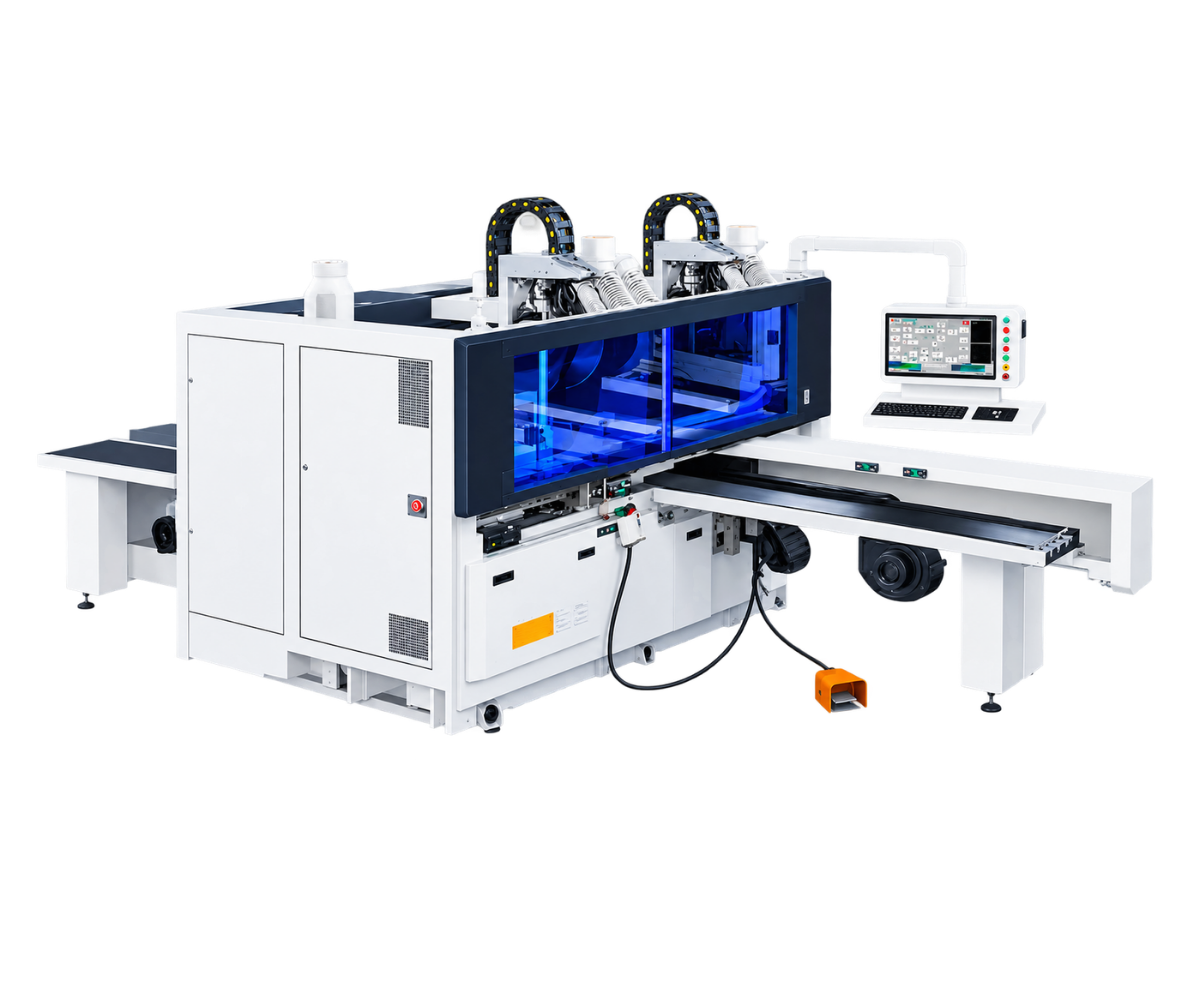

CNC 6-Side Drilling Machine
Category: Multi-Boring Machine
Powertek CNC 6-Side Drilling Machine is a high-performance CNC drilling solution designed for fast, accurate and efficient panel processing. Equipped with automatic feeding, vertical and horizontal drilling, automatic side alignment and irregular shape processing capabilities, the machine is ideal for modular furniture and professional woodworking production. Its advanced CNC system delivers reliable, accurate and consistent drilling performance for high-volume manufacturing.
Key Features
- Automatic Feeding
- Vertical & Horizontal Drilling
- Auto Side Alignment
- Irregular Shape Processing
Application
- Ideal for Modular Furniture Manufacturers
Product Specifications
| MODEL NO | MODEL | MTNC 612HT-ATC | MTNC 690MS | MTNC 690 |
|---|---|---|---|---|
| AXIS TRAVEL AND MAXIMUM POSITIONING SPEED |
X AXIS | 5410MM & 130M/MIN | 5410MM & 130M/MIN | 5410MM & 130M/MIN |
| Y AXIS | 1705MM & 85M/MIN | 1630MM & 85M/MIN | 1390MM & 85M/MIN | |
| Z AXIS | 130MM & 30M/MIN | 140MM & 30M/MIN | 140MM & 30M/MIN | |
| U AXIS | 5410MM & 130M/MIN | 5410MM & 130M/MIN | 5410MM & 130M/MIN | |
| V AXIS | 1340MM & 80M/MIN | 1340MM & 80M/MIN | 1075MM & 80M/MIN | |
| W AXIS | 110MM & 30M/MIN | 130MM & 30M/MIN | 110MM & 30M/MIN | |
| A AXIS | 1195MM & 30M/MIN | 1190MM & 30M/MIN | 950MM & 30M/MIN | |
| Y2 AXIS | 1630MM & 85M/MIN | |||
| Z2 AXIS | 90MM & 30M/MIN | |||

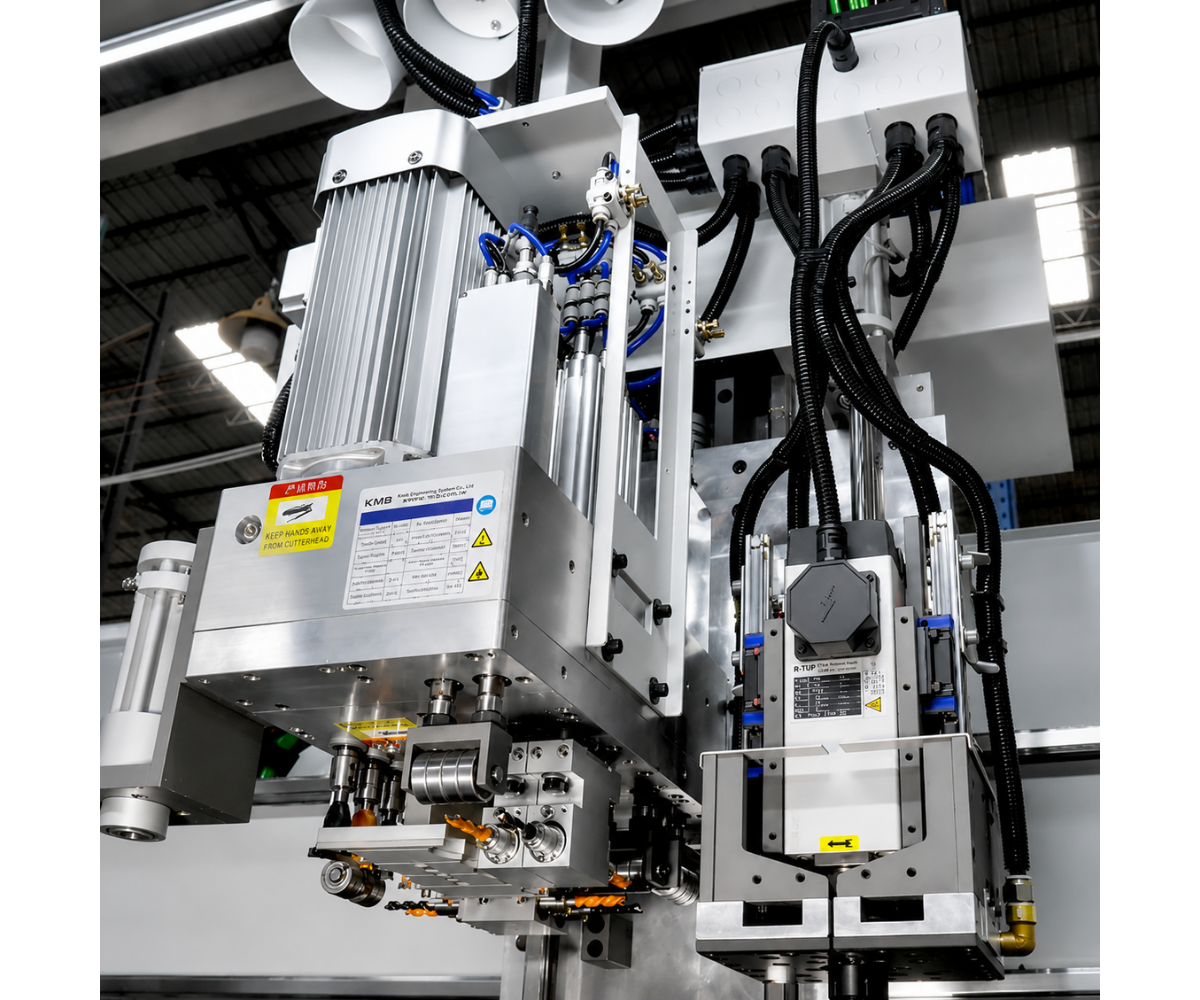

| DRILLING BOX CONFIGURATION |
VERTICAL DRILL BITS | TOP 12PCS AND BOTTOM 9PCS |
TOP 12PCS AND BOTTOM 9PCS |
TOP 12PCS AND BOTTOM 9PCS |
| HORIZONTAL DRILL BITS | 8 | 16 | 8 | |
| DRILLING BOX MOTOR SPEED | 2800R/MIN | 2800R/MIN | 2800R/MIN | |
| MOTOR POWER | 2.2KW*2 | 2.2KW*3 | 2.2KW*2 | |
| MILLING SPINDLE*2 | SPINDLE POWER | 3.5KW | 3.5KW*2 | 3.5KW*2 |
| TOTAL HOLDER DIAMETER | 1/2" | 1/2" | 1/2" | |
| SPINDLE SPEED | 18000RPM | 18000RPM | 18000RPM | |
| PROCESSING SIZE RANGE |
MAX. WIDTH OF PANEL | 1200MM | 1200MM | 900MM |
| MIN. WIDTH OF PANEL | 50MM | 50MM | 50MM | |
| MAX. LENGTH OF PANEL | 5000MM | 5000MM | 5000MM | |
| MIN. LENGTH OF PANEL | 250MM | 250MM | 250MM | |
| MAX. THICKNESS OF PANEL | 48MM | 48MM | 48MM | |
| MIN. THICKNESS OF PANEL | 10MM | 10MM | 10MM | |
| OTHERS PARAMETERS | HEIGHT OF WORKING TABLE | 960MM | 960MM | 960MM |
| TOTAL POWER | 21.9KW | 23.1KW | 18.9KW | |
| WORKING VOLTAGE | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| WORKING PRESSURE | 0.7-0.8MPA | 0.7-0.8MPA | 0.7-0.8MPA | |
| VACUUM FLOW | 7200M³/H | 9400M³/H | 7200M³/H | |
| WEIGHT | 3700KG | 3850KG | 3200KG | |
| OVERALL SIZE | 6480*2840*2200MM | 6480*2840*2200MM | 6480*2540*2200MM |
