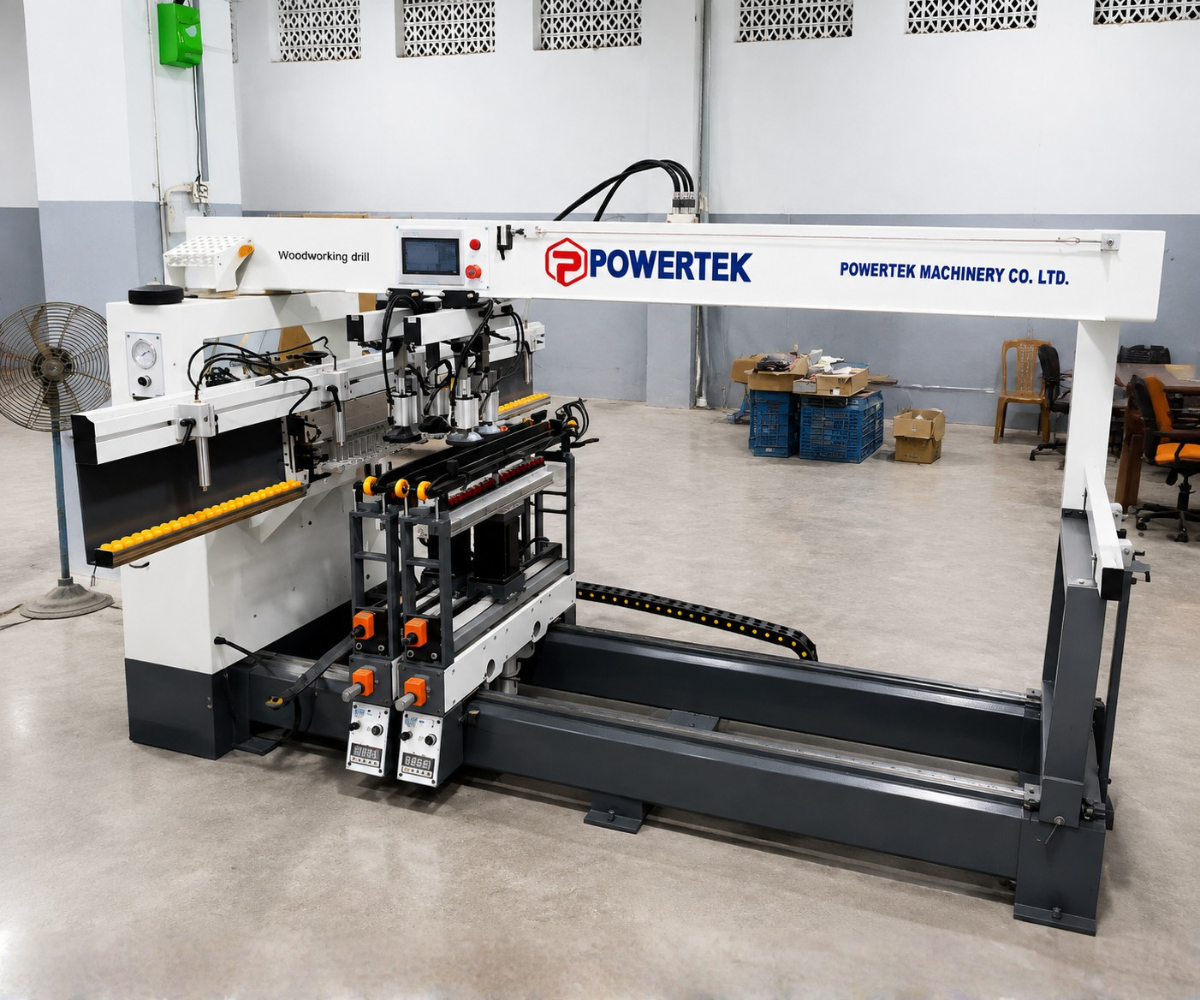

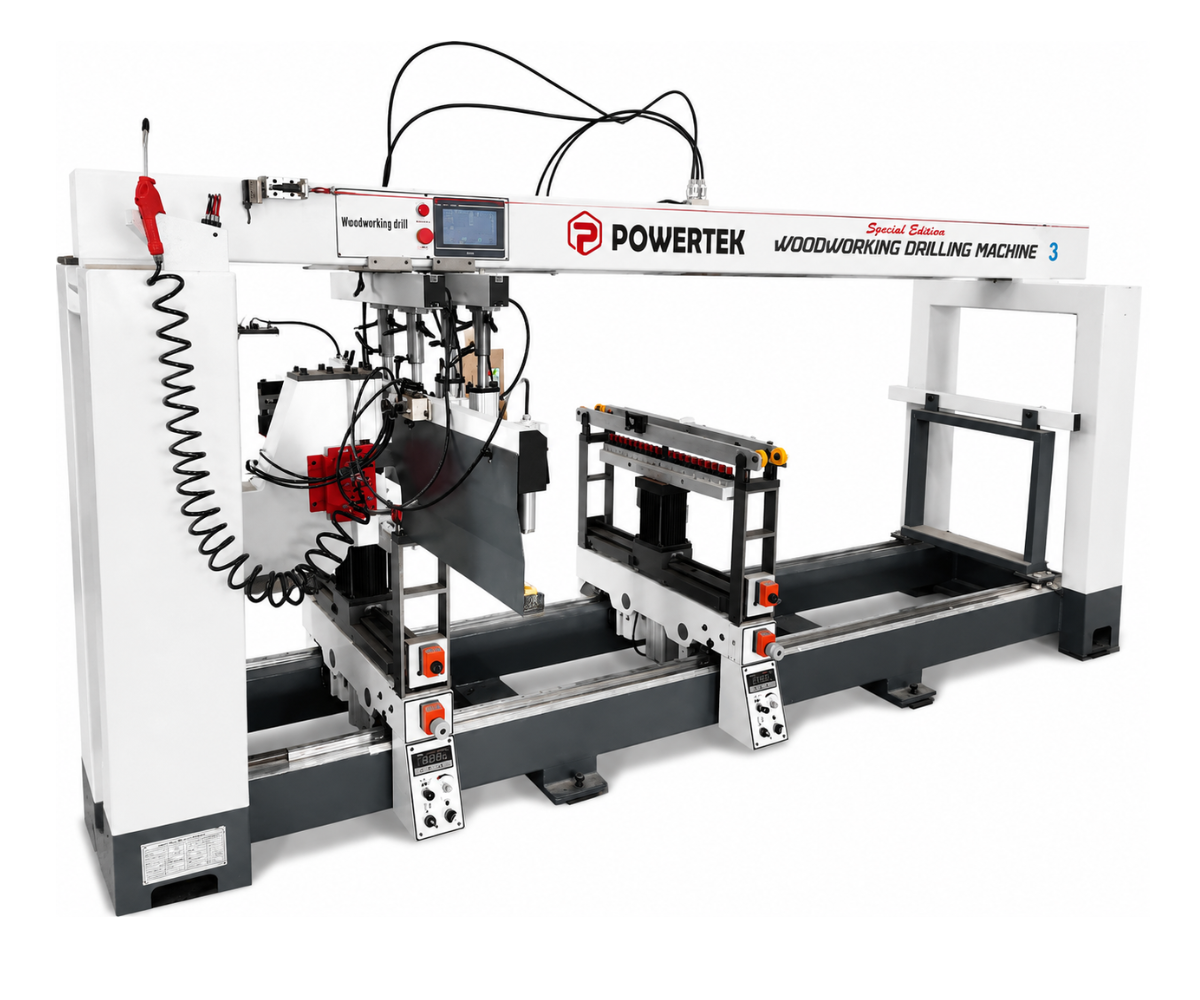

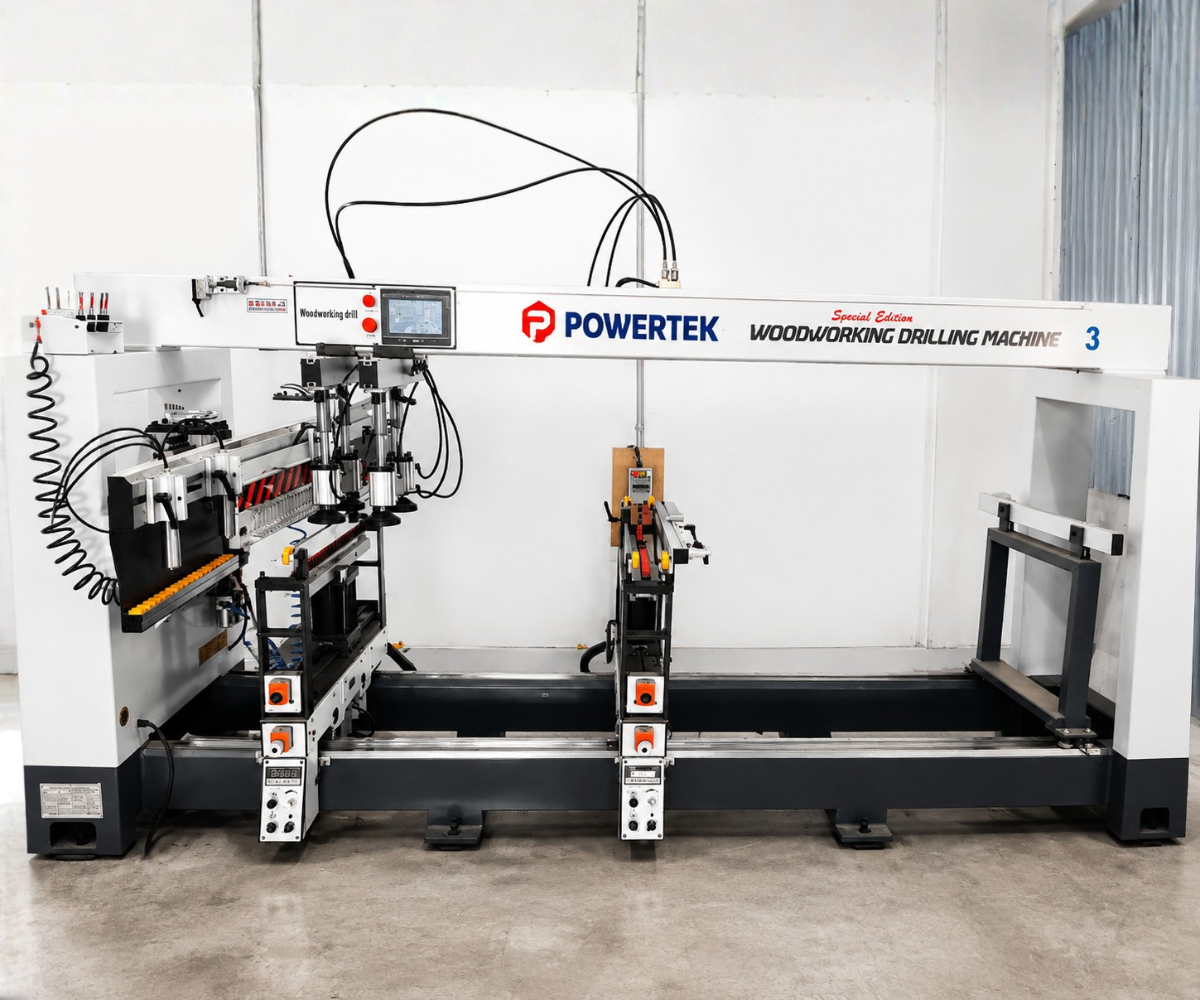

Powertek Three-Head Multi-Boring Machine is designed for fast, precise, and consistent multi-hole drilling in furniture panels, MDF, plywood, and other wood-based materials. Its three-head configuration supports efficient drilling operations while helping maintain accurate hole positioning and improve overall production productivity.
With a robust construction and stable drilling performance, the machine is suitable for professional furniture manufacturing and woodworking applications. It helps reduce repetitive manual work while delivering reliable and uniform drilling results for regular panel processing.
Key Features
- Three-head configuration for efficient multi-hole drilling
- Precise and consistent hole positioning
- Suitable for MDF, plywood, and wood panels
- Efficient drilling for improved production output
- Stable operation and reliable performance
- Robust construction for demanding woodworking applications
- Ideal for furniture and panel processing
Product Specifications
| Model | MTMB 406 |
| Max. processing width (X axis) | 2450 mm |
| Max. distance of 2 horizontal boring position | 640 mm |
| Min. distance of vertical drill | 128 mm |
| Max. thickness of workpiece | 78 mm |
| Horizontal max. drilling depth | 40 mm |
| Vertical max. drilling depth | 70 mm |
| Shaft rotation speed | 2800 rpm (50Hz) |
| Vertical drilling power | 1.1 kW |
| Horizontal drill | 1.5 kW |
| Working pressure | 0.6–0.8 MPa |
| Mechanical dimensions | 3900 × 2500 × 1760 mm |
