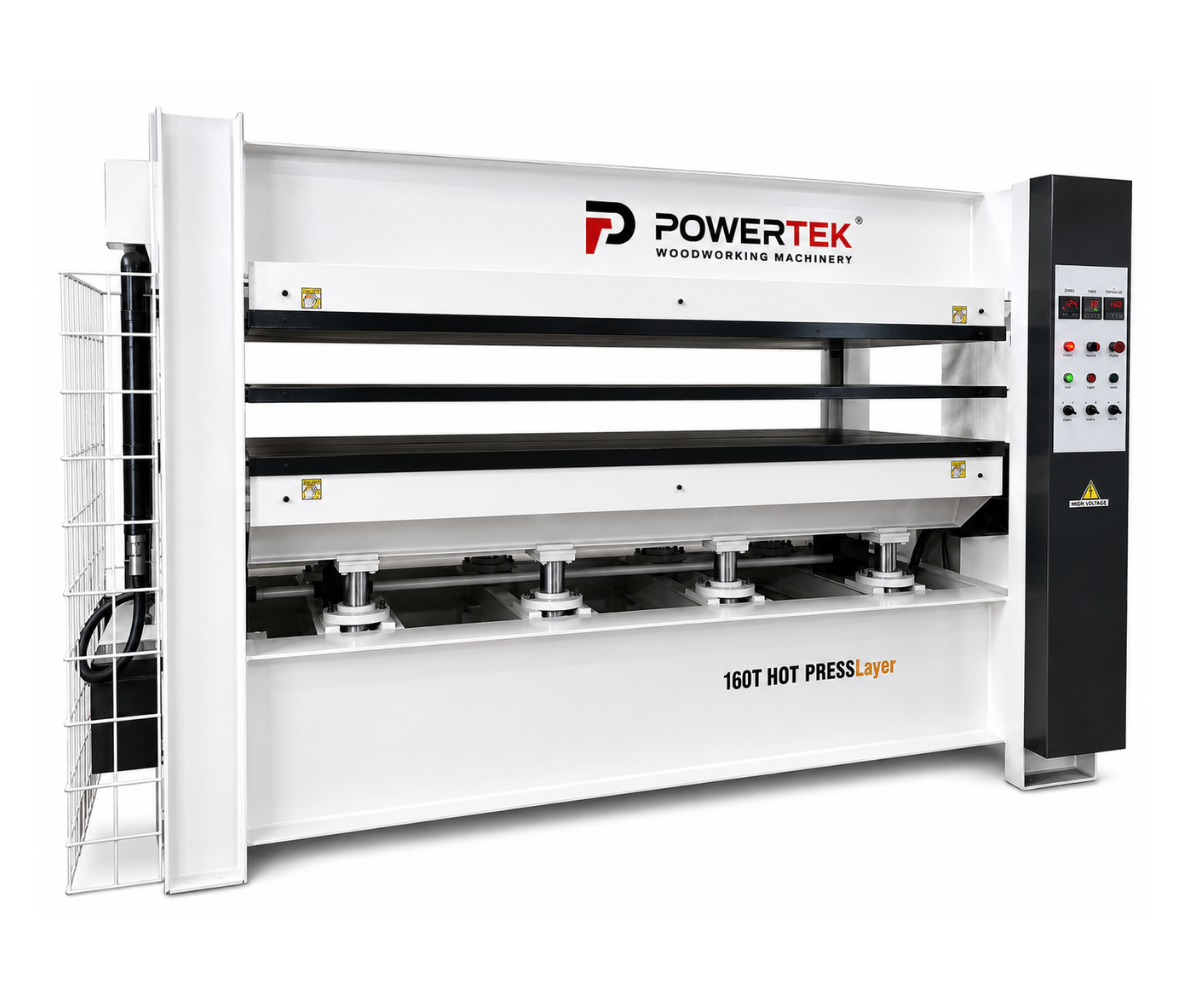

Powertek Hot Press 160T is designed for efficient and uniform hot pressing of laminates, veneers, plywood, MDF, and furniture panels. With a 160-ton pressing capacity, it delivers controlled heat and pressure for strong bonding, smooth surfaces, and consistent finishing in professional woodworking and furniture manufacturing applications.
Built for reliable and stable production performance, the machine is suitable for panel lamination, bonding, and pressing operations. Its robust construction supports consistent results and efficient operation in demanding woodworking environments.
Key Features
- 160-ton pressing capacity
- Efficient combination of heat and pressure
- Suitable for laminates, veneers, plywood, and MDF
- Uniform pressing for strong and consistent bonding
- Supports smooth and professional panel finishing
- Robust construction for reliable operation
- Suitable for furniture and woodworking applications
Product Specifications
| Working size | 2500X1300 mm (8X4 feet) |
| Pressure capacity | 160 tons |
| Hot platen size | 2500X1300X42 mm ± 1 mm |
| No. of daylight | 1 |
| No. of hot platens | 2 |
| Working gap between daylights | 385 mm |
| Max. platen temperature | 120 degrees |
| Heating medium | Thermic oil / Steam |
| Size of hydraulic cylinder | 120 mm |
| No. of hydraulic cylinder | 8 |
| Cylinder stroke (Long) | 400 mm |
| Working pressure | 150 kg/cm² |
| Mode of operation (Automatic) | Electric Controlled by PB panel |
| Hydraulic motor power (with Motors) | 5 HP |
| Pump power for hot oil delivery | 2 HP |
| Electric heaters power (with heaters) | 24 HP |
| Total weight | 5.8 Ton Approx. |
| Overall dimension (L x W x h) | 3700X1650X2065 mm |
