Powertek Automatic Edge Banding Machine is designed for fast, precise, and consistent edge finishing of furniture panels, MDF, plywood, and other wood-based materials. Its automated operation helps improve production efficiency while delivering smooth, uniform, and professional-quality edges.
Built for continuous woodworking and furniture manufacturing applications, the machine offers reliable performance with reduced manual effort. Its robust construction and efficient edge processing make it a dependable solution for high-productivity panel processing requirements.
Key Features
- High-Speed Feeding: 15–20 m/min
- Double Trimming & Buffing Units
- Heavy Duty & Stable Performance
- Smooth & Accurate Edge Finishing
- Digital Display Control
- Glue Tank Capacity: 2 KG
Product Specifications

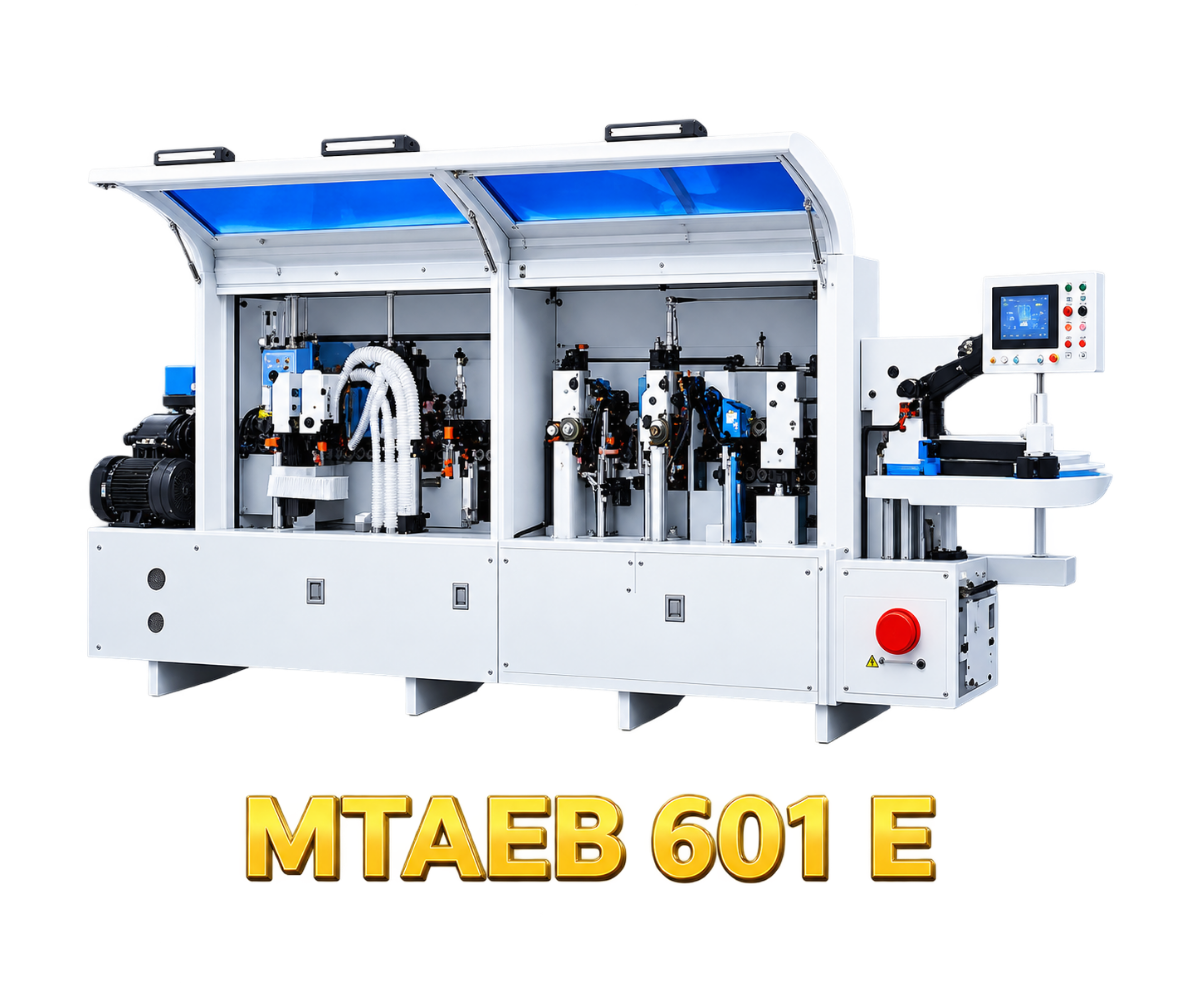

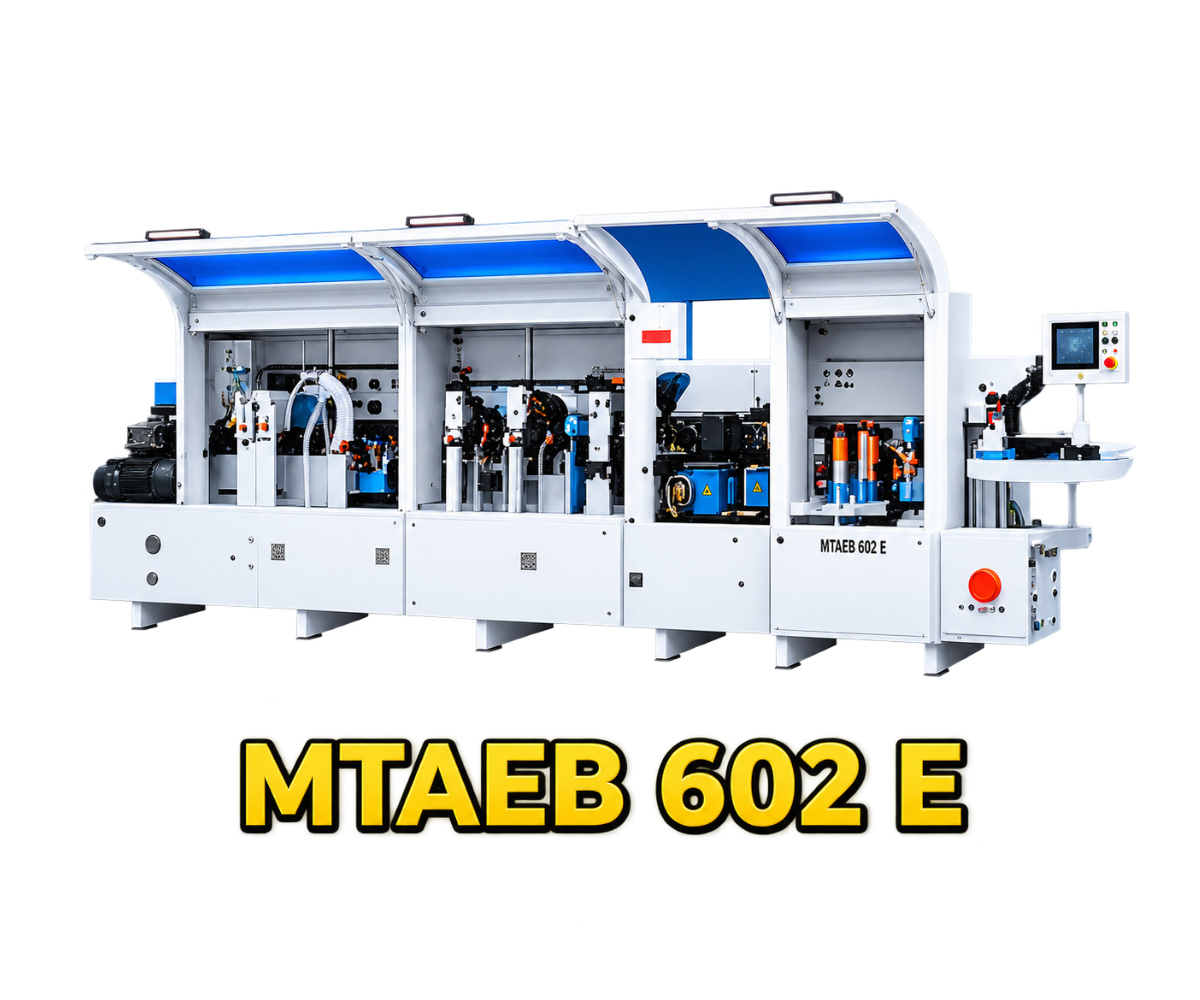

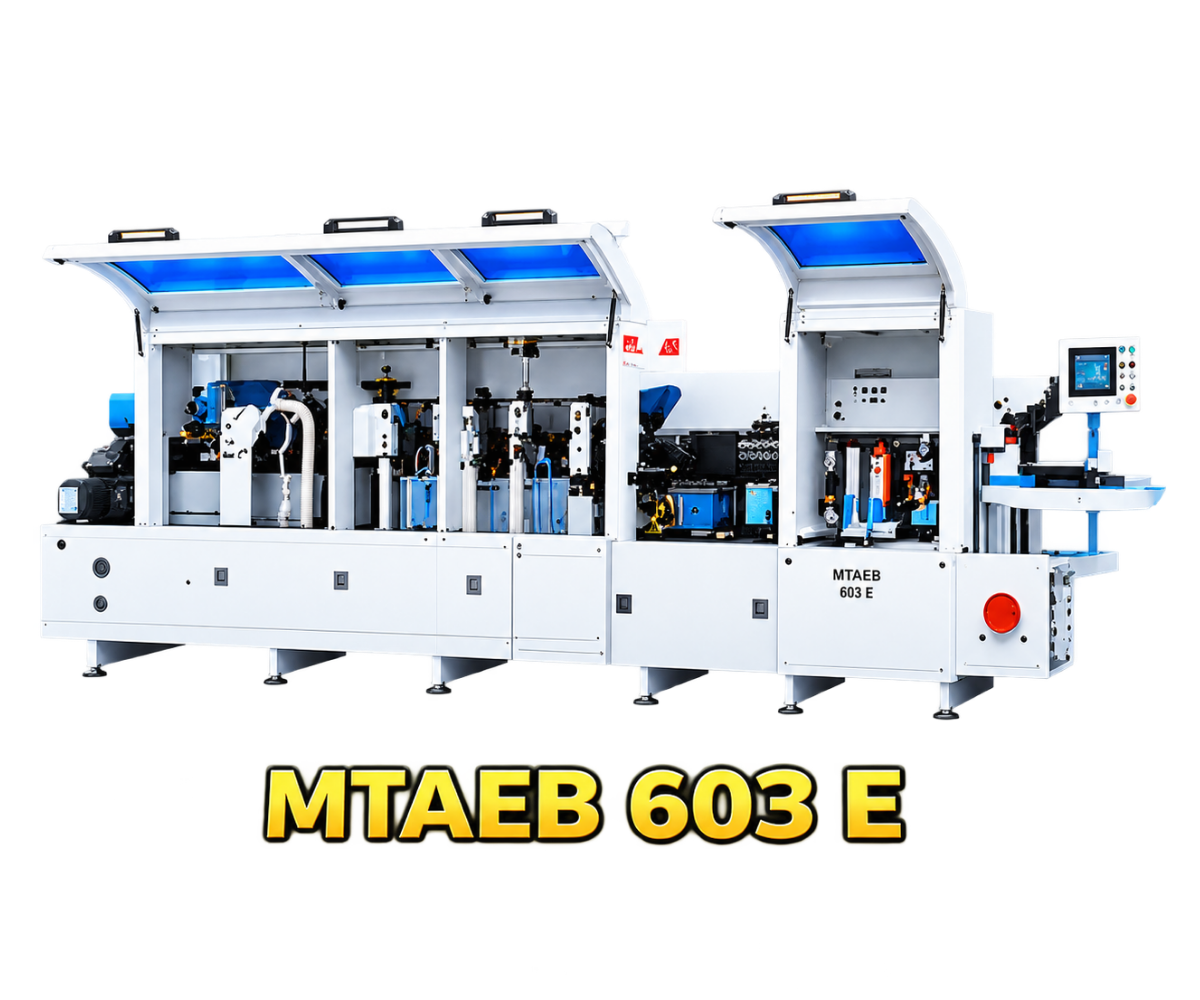

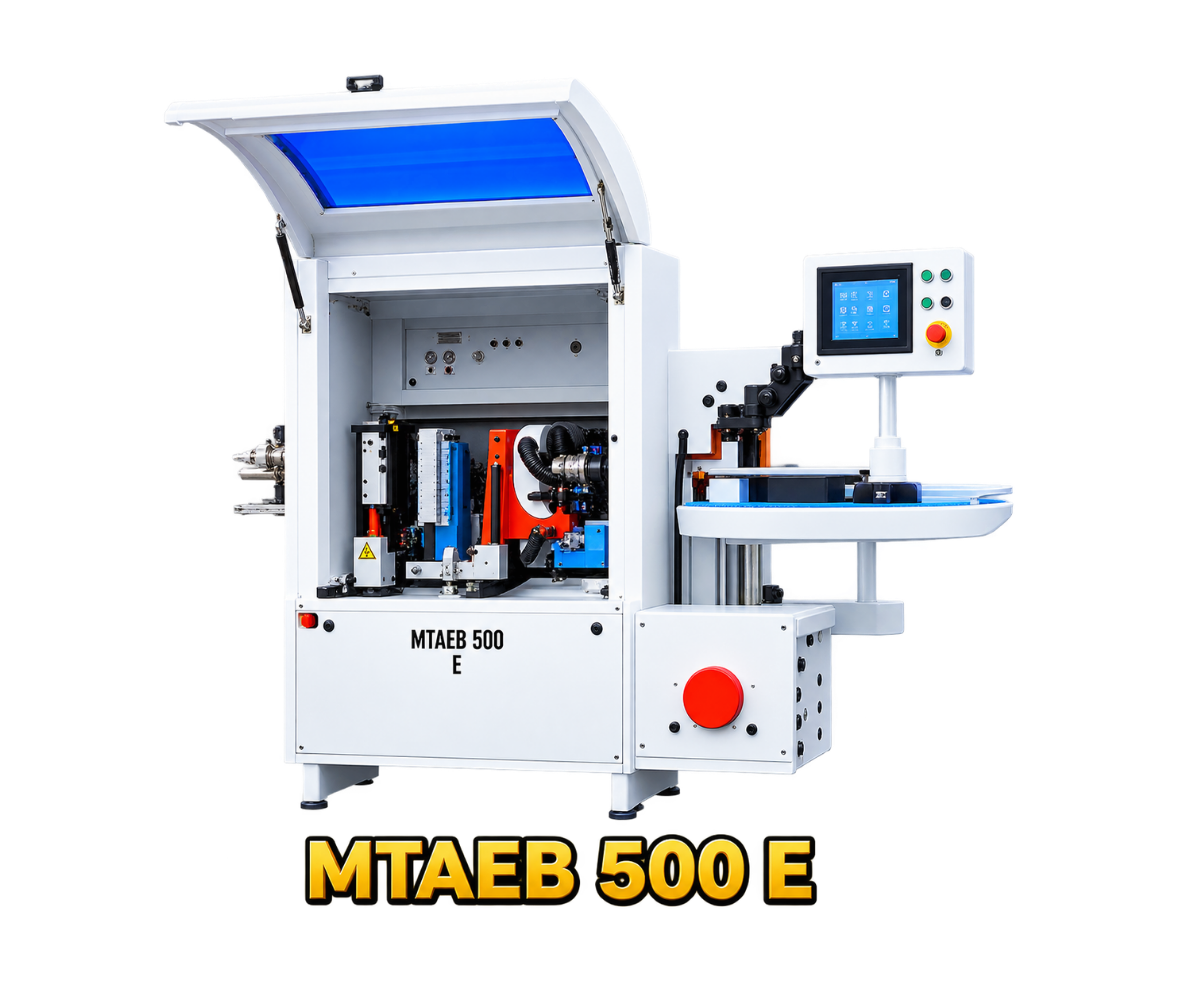

| MODEL NO | MTAEB 603 E | MTAEB 602 E | MTAEB 601 E | MTAEB 600 E | MTAEB 500 E |
|---|---|---|---|---|---|
| Panel Length | >=120mm | >=120mm | >=120mm | >=100mm | >=100mm |
| Panel Width | >=95mm | >=95mm | >=95mm | >=80mm | >=80mm |
| Panel Thickness | 10-60mm | 10-60mm | 10-60mm | 10-60mm | 10-60mm |
| Tape Width | 13-63mm | 13-63mm | 13-63mm | 13-63mm | 13-63mm |
| Tape Thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm |
| Feeding Speed | 15-18-20mtr/min | 15-18-20mtr/min | 15-18-20mtr/min | 15-18-20mtr/min | 15-18-20mtr/min |
| Power Of Premilling Unit | 3 kw * 2 | 3 kw * 2 | 3 kw * 2 | 3 kw * 2 | 3 kw * 2 |
| Power Of End Trimming Unit | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 |
| Conveyor Motor | 3.7kw | 3.7kw | 3.7kw | 3.7kw | 2.2kw |
| Power Of Top And Bottom Rough Trimming Unit | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | |
| Power Of Top And Bottom Fine Trimming Unit | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 |
| Power Of Corner Rounding Unit | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 | 0.75kw*2 |
| Buffing Unit | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 |
| Spraying Unit | yes | yes | yes | yes | yes |
| Glue Tank Capacity | 2kg | 2kg | 2kg | 2kg | 2kg |
| Display | yes | yes | yes | yes | yes |
| Total Power | 13.2kw | 13.2kw | 13.2kw | 10.7kw | 8.8kw |
| Working Pressure | 0.6mpa | 0.6mpa | 0.6mpa | 0.6mpa | 0.6mpa |
| Overall Size | 5810*1000*1700mm | 5410*1000*1700mm | 5410*1000*1700mm | 4500*1000*1700mm | 4000*1000*1700mm |
| Weight | 1900kg | 1800kg | 1800kg | 1700kg | 1400kg |
